TOOL STEEL AISI A2

Category  Steel
Class  Tool steel
Type  Air-hardening medium-alloy cold work steel
Designations  France: AFNOR Z 100 CDV 5
Germany: DIN 1.2363
Japan: JIS SKD 12
Sweden: SS 2260
United Kingdom: B.S. BA 2
United States: ASTM A681 , FED QQ-T-570 , SAE J437 , SAE J438 , UNS T30102
Composition
ElementWeight %
C  0.95-1.05
Mn  1.00
Si  0.50
Cr  4.75-5.50
Ni  0.30
Mo  0.90-1.40
V  0.15-0.50
Cu  0.25
P  0.03
S  0.03
Mechanical Properties

Properties  Conditions
T (°C) Treatment
Density (×1000 kg/m3) 7.86 25
Poisson's Ratio 0.27-0.30 25
Elastic Modulus (GPa) 190-210 25
Thermal Properties
Properties  Conditions
T (°C) Treatment
Thermal Expansion (10-6/ºC) 10.7  20-100

Source: efunda.com

LIST OF AISI CARBON STEEL TYPE 15xx

 List of AISI Carbon Steel type 15xx

Listing of AISI 11xx Carbon Steels


List of AISI Carbon Steel type 11xx
Name Class Alloy Type
AISI 1110  Carbon steel  Standard resulfurized
AISI 1117  Carbon steel  Standard resulfurized
AISI 1118  Carbon steel  Standard resulfurized
AISI 1137  Carbon steel  Standard resulfurized
AISI 1139  Carbon steel  Standard resulfurized
AISI 1140  Carbon steel  Standard resulfurized
AISI 1141  Carbon steel  Standard resulfurized
AISI 1144  Carbon steel  Standard resulfurized
AISI 1145  Carbon steel  Standard resulfurized
AISI 1146  Carbon steel  Standard resulfurized
AISI 1151  Carbon steel  Standard resulfurized
Source:efunda

AISI 4140: Alloy Steel Data Sheet: Composition, Applications and Properties

4140 Alloy Steel Data Sheet
4140 is an alloy steel that is supplied in either the annealed or prehardened condition. The prehardened condition is heat treated to a medium hardness (HRC 28/32) and is designated as 4140 HT. 4140 annealed is supplied in the soft condition and can be hardened to RC 54. 4140 annealed is designated as 4140 Ann or simply 4140. 4140 HT is supplied in many forms such as hot rolled or turned, ground and polished rounds and block or DCF plate to be used as a holder material for high strength structural components.
Category Steel
Class Alloy steel
Type Standard
Common Names Chromium-molybdenum steel
Designations  France: AFNOR 40 CD 4 , AFNOR 42 CD 4
Germany: DIN 1.7225
Italy: UNI 38 CrMo 4 KB , UNI 40 CrMo 4 , UNI G 4O CrMo 4
Japan: JIS SCM 4 , JIS SCM 4 H
Sweden: SS 2244
United Kingdom: B.S. 708 A 42 , B.S. 708 M 40 , B.S. 709 M 40
United States: AMS 6378 , AMS 6379 , AMS 6381B , AMS 6382 , AMS 6382G , AMS 6390 , AMS 6390A , AMS 6395 , ASTM A322 , ASTM A331 , ASTM A505 , ASTM A519 , ASTM A547 , ASTM A646 , MIL SPEC MIL-S-16974 , SAE J404 , SAE J412 , SAE J770 , UNS G41400

Typical Chemistry
Carbon 0.42%
Silicon 0.30%
Molybdenum 0.20%
Manganese 1.00%
Chromium 1.00%

Typical Applications
Support Plates Filler Blocks
Punch Holders Structural Parts
Clamps Base Plates
Gages Molds
Brake Dies Jigs
Fixtures Tool Holders
High-Strength Parts
Annealed Hardness: BHN 185/200.

Thermal Treatments.

Annealing: 1550F (840C), hold 2 hours, slow cool 50F(30C)/hr. max. to 1200F (650C), then air or furnace cool. Hardness BHN 185/200.

Stress Relieving:

Annealed Material: 1100-1300F (595-740C), hold 2 hrs, air cool.

Hardened Material: 50-100F (30-55C) below last tempering temperature, hold 2 hrs, air cool.

Straightening: Best done warm 400-800F (205-425C)

Hardening: (Atmosphere or Vacuum Furnace)

Preheat: 1250-1300F (675-705C), equalize

High Heat: 1550-1600F (840-870C), soak 10 to 30 minutes. For vacuum hardening, use the high side of the high heat range and soak times.

Quench: Oil quench to hand warm, 150F (650C). Temper immediately. Water quenching from 1550F (840C) may be used for simple shapes and larger sections. Note vacuum furnaces must have oil quench capability to achieve comparable results.

Temper: Tempering at 400-1200F (205-650C) for 1 hour per inch (25mm) of thickness at temperature is recommended (2 hrs min). Air cool to room temperature.
Welding

Medium carbon steel filler material.

Annealed Material:
Preheat: 400F (205C)
Postheat: 500-600F (260-315C)

Hardened Material:
Preheat: 50F (30C) less than last tempering temperature.
Postheat: 50F (30C) less than last tempering temperature.

Physical Properties
Modulus of Elasticity .......................29 psi x 106(200 GPa)
Specific Gravity ......................................................(7.81)
Density ........................................0.282 lb/in3(7810 kg/m3
Read more: Mechanical Properties

Properties Conditions
T (°C)Treatment
Density (×1000 kg/m3) 7.7-8.03 25
Poisson's Ratio 0.27-0.30 25
Elastic Modulus (GPa) 190-210 25
Tensile Strength (Mpa) 655.0  25  annealed at 815°C  more
Yield Strength (Mpa) 417.1
Elongation (%) 25.7
Reduction in Area (%) 56.9
Hardness (HB) 197  25  annealed at 815°C more
Impact Strength (J)
(Izod)
54.5  25  annealed at 815°C  more

Thermal Properties

Properties Conditions
T (°C)Treatment
Thermal Expansion (10-6/ºC) 12.3  20-100 more oil hardened, tempered 600°C
Thermal Conductivity (W/m-K) 42.7  100 more
Specific Heat (J/kg-K) 473  150-200 more
Electric Properties

Properties Conditions
T (°C)Treatment
Electric Resistivity (10-9W-m) 222  20

Hello there! If you're enjoying using our website and finding our articles helpful, we would really appreciate your support. With your help, we can continue to develop resources and provide you with even more valuable content.

Thank you for your support.
Source: http://www.efunda.com/materials/alloys/alloy_steels
            http://www.simplytoolsteel.com/4140-alloy-steel-data-sheet

ASTM A276-98b, AISI 440C Stainless Steel Data Sheet: Composition, Applications and Properties

440C Stainless Steel Data Sheet

440C stainless steel is a martensitic grade of stainless steel that provides very good wear resistance combined with moderate corrosion resistance in mild environments. 440C is heat treatable to RC 59. This grade is commonly used in cutlery and food processing applications.
Read more:
440C Stainless steel is a type of modern steel and famous for its high corrosion resistant, wear resistance, strength and hardness qualities among all the stainless alloys, capable of attaining (after heat treatment) the highest hardness (60 HRC). It has good resistance to the atmosphere, fresh water and mild acids. It has best resistance in the hardened, tempered and passivated condition. It allows creating a smooth polished surface and Razor sharp edges. It is being used in cutting instruments, rolling element bearings, valve seats, high quality knife blades, surgical instruments, chisels, ball bearings and valve parts and most commonly used in the production of Cutting tools, including Haircutting Scissors, daggers and swords.
Grades 440A and 440B are identical except for slightly lower carbon contents (0.60 - 0.75% and 0.75 - 0.95% respectively), they attain lower hardness but slightly higher corrosion resistances. Although all three versions of this grade are standard grades, in practice 440C is more available than the A or B variants.
Another alloy 440F (UNS S44020) also exists, with the same high carbon content as 440C.

440C Related Specifications
USA Germany Japan Australia
ASTM A276-98b 440C
SAE 51440C, AISI 440C
UNS S44004
W.Nr 1.4125 X105CrMo17 JIS G4303 SuS 440C AS 2837-1986 440C
Germany: DIN 1.4125
United States: AMS 5618 , AMS 5630 , ASTM A276 , ASTM A314 , ASTM A473 , ASTM A493 , ASTM A580 , FED QQ-S-763 , MIL SPEC MIL-S-862 , SAE 51440C , SAE J405 (51440C) , UNS S44004

Chemical Composition

Carbon 1.00%
Manganese .50%
Chromium 17.50%
Silicon .35%
Molybdenum .50%
Chemical Composition ranges of 440C stainless steel
Grade440C
Ingredients Min. Max.
Carbon 0.95 1.20
Manganese - 1.00
Silicon - 1.00
Phosphorus - 0.040
Sulphur - 0.030
Chromium 16.00 18.00
Molybdenum - 0.75
Iron Balance



Typical Applications

Plastic Injection Molds
Cutlery
Custom Knives
Food Processing Equipment
Bearings
Petroleum Pumps and Valves
Surgical Tools

Corrosion Resistance

440C stainless steel is characterised by good corrosion resistance in mild domestic and industrial environments, including fresh water, organic materials, mild acids, various petroleum products. 440C also provides extreme high strength, hardness and wear resistance when in the hardened and tempered condition.

Thermal Treatments

Preheat : Optional preheat stage for unbalanced geometries or complex designs - 1100/1250F (590/675C), equalize, standard preheat stage - 1400/1500F (760/815C), equalize.

Austenize : 1850/1900F (1010/1020C), equalize, 30/45 minutes at temperature.

Quench : Air, positive pressure vacuum to below 125F (50C)(2 bar minimum). Interrupted oil to below 1000F (540C). Air cool to 150F (65C). Temper immediately.

Temper : 400/800F (205/425C), hold 2 hours at temperature, air cool. Temper twice. Avoid tempering between 800 and 1100F, due to a decrease in toughness and corrosion resistance.

Cryogenic Treating : Refrigeration treatments may improve long term dimensional stability by transforming retained austenite. Refrigeration treatments should generally be performed after the first temper, and must be followed by a temper.

Hardness and Impact Toughness Data
Air cooled from 1885F(1030C)
Tempering
TemperatureHardness
Deg. FDeg. CHRC
As quenched59
21210059
40020556
60031554
80042555
100054051

Surface Treatments

Nitriding decreases the corrosion resistance of stainless steels and is generally not recommended for stainless steels.

Annealing

A. Heat to 1650F (870C), hold 2 hours, slow cool 25F (15C)/hour maximum) to 1200F (650C), air cool.
OR
B. Heat to 1600F (870C), hold 2 hours, cool to 1300F (760C), hold 4 hours, air cool.
Typical annealed hardness: 215/255 BHN.

Stress Relieving

Annealed Material: Heat to 1200/1250F(650/675C), hold two hours, cool in still air.
Hardened Material: Heat to 25F(15C) below original tempering temperature, hold two hours, cool in still air.

Welding

Use 440C or 420 stainless steel filler material. Annealed Material: Preheat 600/800F(320/430C), maintain over 600F(320C) during welding. Reanneal or temper 1200/1400F(650/760C) for 4 hours after welding.

Hardened Material: Preheat to 50F(30C) below original tempering temperature (400F (205C) minimum). Maintain above 400F(205C) during welding. Cool to 150F(65C) after welding. Temper immediately 25F(15C) below original tempering temperature. Minimum 400F(205C)

Physical Properties

Modulus of Elasticity30psix10(6)(200 GPa)
Density0.278 lb/in3(7640 kg/M3)
Thermal Conductivity14.0 BTU/hr./ft./F 24.2 W/m/ °K)
440C Physical Properties
Physical properties for grade 440 stainless steels.
Grade Density (kg/m3) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (mm/m/C) Thermal Conductivity (W/m.K) Specific Heat
0-100C (J/kg.K)
Electrical Resistivity (nW.m)
0-100C 0-200C 0-600C at 100C at 500C
440A/B/C 7650 200 10.1 10.3 11.7 24.2 - 460 600
 Machining
In the annealed condition this grade is relatively easily machined; approximately the same as for high speed steel. If this grade is hardened machining becomes very difficult and probably impossible.

Source:  http://www.multiplex-trd.com/articles/about_440c_steel.htm
             http://www.simplytoolsteel.com/440C-stainless-steel.html

AISI 1005: Properties of Carbon Steel AISI 1005, Composition, Mechanical Properties


AISI 1005 is a Standard grade Carbon Steel. It is composed of (in weight percentage) 0.06%(max) Carbon (C), 0.35%(max) Manganese (Mn), 0.04%(max) Phosphorus (P), 0.05%(max) Sulfur (S), and the base metal Iron (Fe). Other designations of AISI 1005 carbon steel include UNS G10050 and AISI 1005.

Steel is the common name for a large family of iron alloys. Steels can either be cast directly to shape, or into ingots which are reheated and hot worked into a wrought shape by forging, extrusion, rolling, or other processes. Wrought steels are the most common engineering material used, and come in a variety of forms with different finishes and properties. Carbon steels alloying elements do not exceed these limits: 1% carbon, 0.6% copper, 1.65% manganese, 0.4% phosphorus, 0.6% silicon, and 0.05% sulfur.
The typical elastic modulus of carbon steels at room temperature (25°C) ranges from 190 to 210 GPa. The typical density of carbon steels is about 7.85 g/cm3. The typical tensile strength varies between 276 and 1882 MPa. The wide range of ultimate tensile strength is largely due to different heat treatment conditions.


Further Information on AISI 1005 Carbon Steel:


AISI 1005
Category Steel
Class Carbon steel
Type Standard
Designations  United States: ASTM A29 , ASTM A510 , MIL SPEC MIL-S-11310 (CS1005) , SAE J403 , SAE J412 , UNS G10050
Composition

ElementWeight %
C  0.06 (max)
Mn  0.35 (max)
P  0.04 (max)
S  0.05 (max)

Mechanical Properties

Properties Conditions
T (°C)Treatment
Density (×1000 kg/m3) 7.872 25
Poisson's Ratio 0.27-0.30 25
Elastic Modulus (GPa) 190-210 25
Thermal Properties

Properties Conditions
T (°C)Treatment
Thermal Expansion (10-6/ºC) 12.6  0-100 more
Specific Heat (J/kg-K) 481  50-100 more




Source: www.efunda.com

AISI 1340: Properties of Alloy Steel AISI 1335, Composition, Mechanical Properties


AISI 1340 is a Standard grade Alloy Steel. It is commonly called AISI 1340 Manganese steel. It is composed of (in weight percentage)
0.38-0.43% Carbon (C),
1.60-1.90% Manganese (Mn),
0.035%(max) Phosphorus (P),
0.04%(max) Sulfur (S),
0.15-0.30% Silicon (Si),
and the base metal Iron (Fe).
Other designations of AISI 1340 alloy steel include UNS G13400 and AISI 1340
Steel is the common name for a large family of iron alloys. Steels can either be cast directly to shape, or into ingots which are reheated and hot worked into a wrought shape by forging, extrusion, rolling, or other processes. Wrought steels are the most common engineering material used, and come in a variety of forms with different finishes and properties. Alloy steels are steels that exceed the element limits for Carbon steels. However, steels containing more than 3.99% chromium are classified differently as stainless and tool steels. Alloy steels also includes steels that contain elements not found in carbon steels such as nickel, chromium (up to 3.99%), cobalt, etc.
The typical elastic modulus of alloy steels at room temperature (25°C) ranges from 190 to 210 GPa. The typical density of alloy steels is about 7.85 g/cm3. The typical tensile strength varies between 758 and 1882 MPa. The wide range of ultimate tensile strength is largely due to different heat treatment conditions.
AISI 1340



Category Steel
Class Alloy steel
Type Standard
Common Names Manganese steel
Designations  United States: ASTM A322 , ASTM A331 , ASTM A519 , ASTM A547 , MIL SPEC MIL-S-16974 , SAE J404 , SAE J412 , SAE J770 , UNS G13400
Composition

ElementWeight %
C  0.38-0.43
Mn  1.60-1.90
P  0.035 (max)
S  0.04 (max)
Si  0.15-0.30


Mechanical Properties

Properties Conditions
T (°C)Treatment
Density (×1000 kg/m3) 7.7-8.03 25
Poisson's Ratio 0.27-0.30 25
Elastic Modulus (GPa) 190-210 25
Tensile Strength (Mpa) 703.3  25  annealed at 800°C  more
Yield Strength (Mpa) 436.4
Elongation (%) 25.5
Reduction in Area (%) 57.3
Hardness (HB) 207  25  annealed at 800°C more
Impact Strength (J)
(Izod)
70.5  25  annealed at 800°C  more


Source: efunda.com

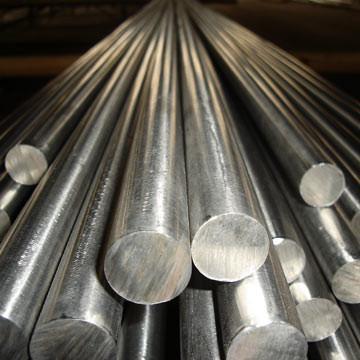

AISI 1335: Properties of Alloy Steel AISI 1335


AISI 1335

Category Steel
Class Alloy steel
Type Standard
Common Names Manganese steel
Designations  France: AFNOR 40 M 5
Germany: DIN 1.1167
Japan: JIS SCMn 3 , JIS SMn 2 , JIS SMn 2 H
Sweden: SS 2120
United States: ASTM A322 , ASTM A331 , ASTM A519 , ASTM A547 , MIL SPEC MIL-S-16974 , SAE J404 , SAE J412 , SAE J770 , UNS G13350


Composition

ElementWeight %
C  0.33-0.38
Mn  1.60-1.90
P  0.035 (max)
S  0.04 (max)
Si  0.15-0.30
Mechanical Properties

Properties Conditions
T (°C)Treatment
Density (×1000 kg/m3) 7.7-8.03 25
Poisson's Ratio 0.27-0.30 25
Elastic Modulus (GPa) 190-210 25

Source: www.efunda.com

AISI 420 - X20Cr13





www.trafilix.com/en_pdf/AISI420.pdf
 www.cintool.com/catalog/mold_quality/420.pdf
AISI Type 420

Category Steel
Class Stainless steel
Type Martensitic standard
Common Names Chromium steel
Designations  France: AFNOR Z 20 C 13
Germany: DIN 1.4021
Italy: UNI X 2O Cr13
Japan: JIS SUS 420 J1
Sweden: SS 2303
United Kingdom: B.S. 420 S 37 , B.S. CDS-18
United States: AMS 5506 , AMS 5621 , ASTM A276 , ASTM A314 , ASTM A473 , ASTM A580 , FED QQ-S-763 , FED QQ-S-766 , FED QQ-W-423 , MIL SPEC MIL-S-862 , SAE 51420 , SAE J405 (51420) , UNS S42000

Composition

ElementWeight %
C  0.15 (min)
Mn  1.00
Si  1.00
Cr  12.0-14.0
P  0.04
S  0.03

Mechanical Properties

Properties Conditions
T (°C)Treatment
Density (×1000 kg/m3) 7.8 25
Poisson's Ratio 0.27-0.30 25
Elastic Modulus (GPa) 200 25
Tensile Strength (Mpa) 860  25  annealed, cold finished (wire) more
Yield Strength (Mpa)
Elongation (%)
Reduction in Area (%)
Hardness (HRC) 52  25  tempered at 205°C (bar)

Thermal Properties

Properties Conditions
T (°C)Treatment
Thermal Expansion (10-6/ºC) 10.3  0-100 more
Thermal Conductivity (W/m-K) 24.9  100
Specific Heat (J/kg-K) 460  0-100
Electric Properties

Properties Conditions
T (°C)Treatment
Electric Resistivity (10-9W-m) 550  25

AISI 1045

AISI 1045

Category Steel
Class Carbon steel
Type Standard
Designations France: AFNOR XC 42 TS , AFNOR XC 45 , AFNOR XC 48 , AFNOR XC42
Germany: DIN 1.1191
Japan: JIS S 45C , JIS S 48 C
Sweden: SS 1672
United States: ASTM A29 , ASTM A510 , ASTM A519 , ASTM A576 , ASTM A682 , FED QQ-S-635 (C1045) , FED QQ-S-700 (1045) , SAE J403 , SAE J412 , SAE J414 , UNS G10450
Composition

ElementWeight %
C 0.43-0.50
Mn 0.60-0.90
P 0.04 (max)
S 0.05 (max)



Mechanical Properties

PropertiesConditions
T (°C)Treatment
Density (×1000 kg/m3) 7.7-8.03 25
Poisson's Ratio 0.27-0.30 25
Elastic Modulus (GPa) 190-210 25
Tensile Strength (Mpa) 585 25 cold drawn, annealed (round bar (16-22 mm)) more
Yield Strength (Mpa) 505
Elongation (%) 12
Reduction in Area (%) 45
Hardness (HB) 170 25 cold drawn, annealed (round bar (19-32 mm)) more
Thermal Properties

PropertiesConditions
T (°C)Treatment
Thermal Expansion (10-6/ºC) 15.1 0-700 more annealed

Source: efunda

General Characteristics of AISI 1045

AISI 1045 is a low-cost alloy suitable for most engineering and construction applications. A medium-carbon steel with adequate strength and toughness characteristics, AISI 1045 is valuable for induction- or flame-hardened components.

Chemical Composition of AISI 1045

  • Carbon 0.43
  • Manganese 0.60-0.90
  • Phosphorus 0.040 max
  • Sulfur 0.050 max
  • Silicon 0.15 to 0.30, or:
  • 0.10 max
  • 0.10-0.20
  • 0.20-0.40
  • 0.30-0.60
  • Iron balance

Heat Treatment of AISI 1045

  • 1300°F (704°C) safe tempering maximum
  • Normalize by heating to 1575° to 1650°F (857° to 899°C)
  • Full anneal at 1500° to 1625°F (816° to 885°C)
  • Process anneal after cold working at 1100° to 1225°F (593° to 663°C)
  • Harden
    • Heat to 1500° to 1600°F (816° to 871°C)
    • Water or oil quench
    • Temper to appropriate hardness

Applications of AISI 1045

  • Cold extrusion
  • Cold drawing
  • Shafts
  • Pins
  • Axles
  • Rods
  • Studs
  • Machine parts
  • Bolts
  • Gears
  • Pinions
  • Forgings
  • Bulldozer edges

    Machinability of AISI 1045

  • Annealed, normalized, and quenched and tempered state allows easy machining
  • Up to 70% of B1112 machinability rating for cold-drawn and annealed stock
  • Cobalt high-speed steel or carbide-tip tools
  • Sulfurized or chlorinated cutting oils for high-speed steel cutters
  • No oil for carbide-tip tools
  • Grind high-speed steel turning tools
    • 8-12° side rake
    • 6-10° back rake
    • 7-9° side and end relief
    • 12-16° side cutting-edge angle
    • 8-14° end cutting-edge angle
    • Nose radius 10% of cut depth
  • Grind carbide-tip tools
    • 6-12° side rake
    • 2-8° back rake
    • 6-10° side and end relief
    • 8-12° end cutting-edge angle
    • 8-16° side cutting-edge angel
    • 1/32” nose radius

Workability of AISI 1045

  • Hot work from 2250° to 1800°F (1232° to 982°C)
  • Intermediate annealing required for considerable cold working
  • Fully anneal when further cold work will follow extensive cold work

AISI High-Strength Low-Alloy: SAE 942X


High-Strength Low-Alloy Steel

Name Class Alloy Type
SAE 942X Alloy steel HSLA (High-Strength Low-Alloy) steel
SAE 945A Alloy steel HSLA (High-Strength Low-Alloy) steel
SAE 945C Alloy steel HSLA (High-Strength Low-Alloy) steel
SAE 945X Alloy steel HSLA (High-Strength Low-Alloy) steel
SAE 950A Alloy steel HSLA (High-Strength Low-Alloy) steel
SAE 950B Alloy steel HSLA (High-Strength Low-Alloy) steel
SAE 950C Alloy steel HSLA (High-Strength Low-Alloy) steel
SAE 950D Alloy steel HSLA (High-Strength Low-Alloy) steel
SAE 950X Alloy steel HSLA (High-Strength Low-Alloy) steel
SAE 955X Alloy steel HSLA (High-Strength Low-Alloy) steel
SAE 960X Alloy steel HSLA (High-Strength Low-Alloy) steel
SAE 965X Alloy steel HSLA (High-Strength Low-Alloy) steel
SAE 970X Alloy steel HSLA (High-Strength Low-Alloy) steel
SAE 980X Alloy steel HSLA (High-Strength Low-Alloy) steel

SAE 942X is a specific grade of High-Strength Low-Alloy (HSLA) Steel. Here are some important property data for this material:

1.      Chemical Composition: SAE 942X contains iron, carbon, manganese, silicon, phosphorus, sulfur, chromium, nickel, molybdenum, and copper. The exact composition may vary depending on the manufacturer's specifications.

Element

Weight %

C

 0.21

Mn

 1.35

P

 0.04

S

 0.05

Si

 0.90

 2.      Density: The density of SAE 942X is approximately 7.85 g/cm³.

3.   Mechanical Properties: SAE 942X is a high-strength steel that can provide excellent mechanical properties. The typical tensile strength for this material ranges from 550 MPa to 700 MPa, and the yield strength ranges from 380 MPa to 500 MPa. The elongation is typically around 15-20%.

4.      Corrosion Resistance: SAE 942X contains alloying elements that provide some degree of corrosion resistance. However, it is not as corrosion resistant as stainless steel or other alloys specifically designed for corrosion resistance.

5.      Weldability: SAE 942X is generally considered to be weldable using common welding techniques like gas metal arc welding (GMAW) and shielded metal arc welding (SMAW). However, it is important to take proper precautions to avoid issues such as cracking or porosity.

Overall, SAE 942X is a high-strength, low-alloy steel that is commonly used in automotive and other industrial applications that require high strength and good weldability. Its mechanical properties make it suitable for use in structural components, such as chassis, suspension systems, and roll cages.


© Copyright 2013 Search Steel
